Rendering Planetwide Volumetric Clouds in Skybolt

The Skybolt engine was built for rendering realistic planetary environments at multiple visual scales, viewed from the planet surface, outer space, and anywhere in between. This article describes techniques used to render clouds in Skybolt. Our goals for the clouds system were:

• Seamlessly mix real-world cloud coverage maps with procedural cloud modeling to achieve high detail across multiple visual scales.
• Simulate light scattering in clouds and atmosphere, achieving a range of lighting conditions from clear skies to overcast.

Skybolt’s implementation uses a similar approach to cloud systems implemented in the Frostbite Engine[1] and Horizon Zero Dawn[2]. Our approach is as follows:

1. Model clouds in a 3D procedural volume, driven by 2D and 3D textures mixed at various scales.
2. Render the volume by marching along rays from the camera. At each ray-march step, accumulate luminance and transmission loss, approximating occlusion and multi-scattering.
3. Apply Aerial Perspective, that is, atmospheric scattering effects between the camera and the cloud.
4. Apply cloud shadow and occlusion masking to the scene under the clouds. The occlusion must be applied to both solid geometry, and atmospheric particles which reflect light toward the camera.

Modeling Cloud Shapes

Skybolt’s clouds are represented as a 3D density volume. The volume is shaped as a shell around the planet, with an inner radius equal to the planet radius plus minimum cloud layer height, and outer radius equal to planet radius plus maximum cloud layer height. During rendering, we perform ray vs sphere intersect tests against the inner and outer radii to determine the start and end points for ray-marching.

Since storing voxel data for a planet-sized volume would be prohibitively expensive, we generate the density field procedurally on read during render time. The density field is driven by input textures at different detail scales:

• 2D global cloud coverage texture
  • 8096 x 8096 map, giving a base resolution of 5 km per pixel.
  • We interpret each pixel as a coverage value from 0% to 100%.
• 2D tiling cloud coverage modulation texture
  • Modulates the global coverage map to produce high frequency cloud shapes.
  • Generated from fractal Worley noise.
• 2D tiling cloud type texture
  • Blends between different cloud types in different locations.
  • Cloud type is defined as having a unique top height, bottom height, and density.
  • Generated from fractal Perilin noise.
• 3D volume cloud density texture
  • 128 x 128 x 128 volume texture that modulates density, generated from fractal Worley noise.

As per the Horizon approach[2], low detail is eroded by high detail by:

float result = saturate(remap(lowDetail, 1 - highDetail, 1.0));

A consequence of erosion that the mean value of the output no longer matches the mean value of the input, resulting in a difference in cloud coverage fraction between input and output. Since our goal is to achieve visual consistency between scales, we modified the operation as follows to preserve the mean value between scales:

float f = 1.0 - lowDetail;
float h = 0.4; // adjustable filter

float a = highDetail * (1.0-h) + h;
float result = saturate(remap(a, f, f + h));

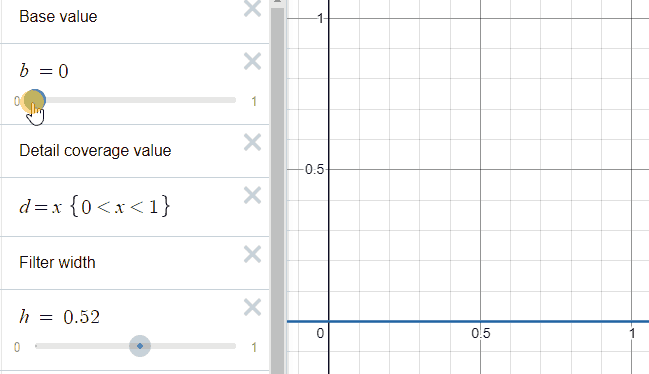

This modification preserves the output intensity range and mean, and provides an adjustable filter to control coverage falloff at cloud edges. The grey curve in the graph below shows how the output (y axis) value changes with respect to the high detail coverage value (x axis) and the low detail map coverage value (blue line). The mean output can be seen to scale linearly between [0, 1] with respect to the low detail value between [0, 1]. For comparison, the red area shows the original erosion method giving non-linear output. The Desmos graph is available here.

Adaptive Ray-Marching

Skybolt uses an adaptive ray-marching algorithm to integrate the volume. The idea behind adaptive ray marching is to adjust the step size dynamically to only take samples where necessary. The algorithm works as follows:

1. Define a ray beginning at the camera, directed into the volume.
2. Advance along ray one big step, and sample density of the low detail volume.
3. If the density is zero, repeat step 2. Otherwise, move one big step backwards along the ray.
4. Advance along the ray in small steps, sampling the high detail volume, integrating luminance and transmission at each step. Continue until we hit an area of zero density, then go to step 2.

We increase the size of the small steps with distance from the camera, since more distant clouds can be rendered with less visual fidelity.

Multiple Scattering

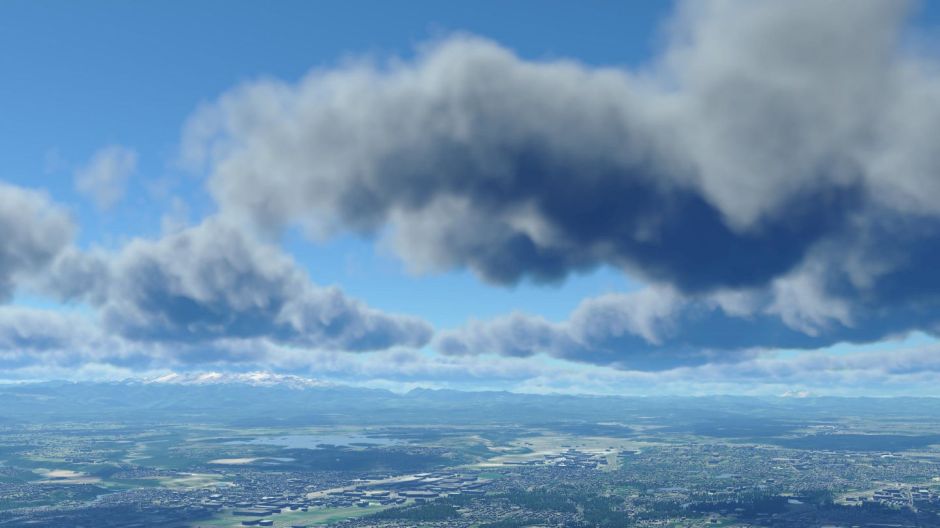

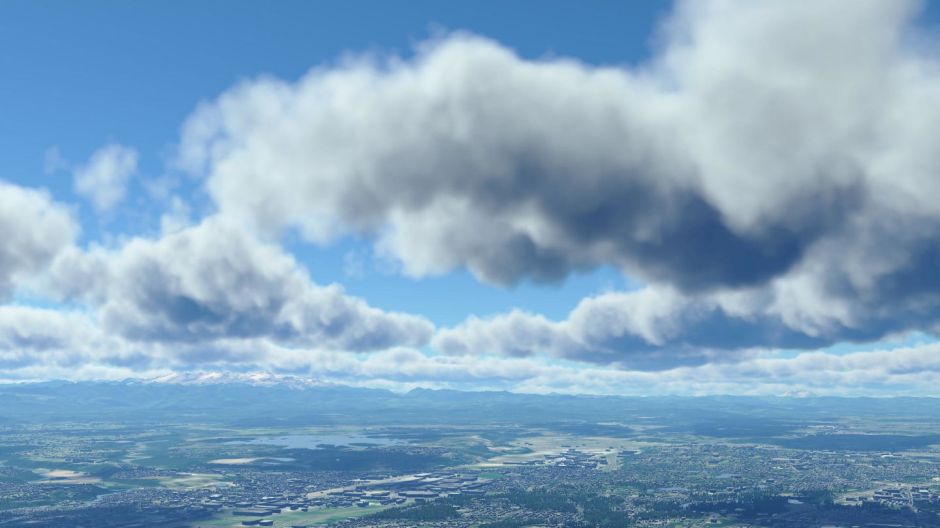

We implemented a multiple scattering approximation developed by Wrenninge for the movie Oz The Great And Powerful[3]. The method was later used by Hillaire in the Frostbite Engine[2]. The approximation is simple to implement and efficient to compute, as no additional light paths need to be evaluated. Instead, a single scattering path is evaluated N times with different coefficients, and summed. Each successive addition represents an extra bounce, or octave, in the multiple scattering integral. The coefficients are calculated to simulate light transport on the equivalent multiple scattering path for that octave number. The result is an addition of multiple scattering energy which would otherwise be missing from a single scattering only solution. The Skybolt implementation is shown below:

vec3 luminance = vec3(0);
for (int N = 0; N < 3; ++N) // multi scattering octaves
{
	// Calculate multi-scattering approximation coefficients.
	// Using a falloff base of 0.5 looks fine for all coefficients,
	// but they can be tuned individually if needed.
	float k = pow(0.5, N);
	float albedoMScatK = k;
	float extinctionMScatK = k;
	float hgMScatK = k;

	// Perform single scattering calculation modified by the coefficients
	float beer = pow(transmittance, extinctionMScatK);
	float phaseFunction = mix(oneOnFourPi, hg, hgMScatK);

	luminance += occlusion * sunIrradiance * albedo * albedoMScatK * beer * phaseFunction;
}

As the number of bounces increases, the light direction becomes more random. This is modeled by mixing the Henyey-Greenstein phase function toward uniform scattering, given by 1 divided by the 4 pi normalization factor for energy conservation.

mix(oneOnFourPi, hg, hgMScat)

Aerial Perspective

Aerial perspective is the phenomenon where the scene further from the camera appears tinted blue due to sun and skylight reflecting off particles in the atmosphere and ‘in-scattering’ toward the camera.

Skybolt uses Bruneton’s phyiscally based atmospheric scattering model[4] to compute atmospheric scattering. The model is highly realistic and has been validated against libRadtran[5], a well tested model used in the atmospheric sciences. We followed the approach used in the Frostbite engine to combine the effects of atmospheric scattering and volumetric clouds in a physically plausible way.

In this approach, during ray marching we calculate the transmittance-weighted average cloud distance along the ray. This distance is then used to evaluate in-scattering and transmittance loss from atmospheric particles using Bruenton’s model. We then use this result to adjust the integrated cloud luminance using the formula:

vec3 finalLuminance = cloudLuminance * transmittance + inScattering;

Scene Shadows and Occlusion

Cloud shadows and ambient occlusion is calculated at each vertex of objects under the cloud layer. We calculate shadowing by sampling cloud coverage at a point where the ray connecting the vertex to the sun intersects the cloud layer. We calculate ambient occlusion the same way, except that we sample a low resolution mip-map of the global cloud coverage texture to obtain an averaged occlusion approximation.

As well as applying occlusion to each vertex, we also account for occlusion of light scattered by the atmospheric into the view ray. This is done by multiplying the Bruneton in-scattering term by the cloud occlusion factor.

Future Work

In the future the system could be improved in several ways:

• Add the ability to stack multiple cloud layers at different altitudes.
• Support a wider range of cloud shape textures and parameters to more accurately model different cloud types, for example cumulus, cumulonimbus, stratus, cirrus etc.
• Improve performance by combining samples spread across multiple frames.
